M16A1 clone build: the Vietnam M16, part by part

Picture an American rifleman in Vietnam and you're probably picturing an M16A1: a 20 inch barrel, triangle handguards, a birdcage on the muzzle and a teardrop forward assist on the right of the upper.

Colt built it as the Model 603, and the Army standardized it in early 1967. We matched every issued part to what you can buy today, and we say so plainly when you can't buy it at all.

What an M16A1 clone copies

You're copying Colt's Model 603 as the Army standardized it. The cards below come from the 1985 operator's manual.

That manual draws one line between the M16 and the M16A1: the forward assist. The A1 has a plunger on the right of the upper for pushing a stubborn bolt closed, and the M16 doesn't.

The lower reads SAFE, SEMI and AUTO. There's no burst on an A1, because burst arrived with the M16A2. The 1991 maintenance manual gives the overall length as 39.625 inches, so the two Army manuals don't quite agree.

M16A1 history: from Colt 603 and XM16E1

Colt started delivering Model 603 rifles in the spring of 1964 as the XM16E1, the Army's own version of the Air Force M16. Type classification as the M16A1 followed in early 1967, and Colt kept delivering 603s until 1982, per Ekie's AR15.COM guide and Wikipedia.

A Marine of the 1st Military Police Battalion guards the main bridges into Da Nang, Vietnam, in a photo Wikimedia Commons dates to 1969. Official U.S. Marine Corps photo by Cpl. Mike Teramoto, Jonathan Abel Collection, Marine Corps Archives and Special Collections. Public domain, via Wikimedia Commons.

Why the Army wanted a forward assist

The other services didn't, and neither did Colt. A House subcommittee chaired by Representative Richard Ichord reported on the rifle in October 1967, and its report lists the objections. The Air Force judged the device not justifiable, the Navy and Marine Corps called it nonessential, and Colt called it unnecessary.

The Army's project manager testified it went on by direction from higher authority, not because of test results, and it added $4.53 to every Army rifle. Wikipedia names Eugene Stoner as another opponent, but we couldn't confirm that in a primary source.

The 1967 jamming crisis and the fixes

The A1 arrived in the middle of a crisis. Troops in Vietnam reported rifles failing to extract, and the Ichord report blamed the switch from IMR stick powder to ball propellant, plus shortages of cleaning gear, manuals and training.

Ball propellant fouled the action and raised the cyclic rate. The fixes came in stages: an improved buffer entered production in December 1966, and the birdcage replaced the three prong around 1966 and 1967.

Chrome chambers were due on new barrels in August 1967, until a July strike at Colt delayed them more than a month. Cleaning kits followed, with Will Eisner's comic book manual, DA PAM 750-30, first issued on 28 June 1968. Trapdoor stocks came around 1969 and chrome bores in the early 1970s.

Who built them: Colt, H&R and GM Hydra-Matic

Colt built most of them. On 19 April 1968 the Army signed Harrington & Richardson and GM's Hydra-Matic Division as second sources, and between them they built roughly 700,000 more rifles by 1971.

Hydra-Matic's two contracts came to 469,217 rifles in the 3,000,000 serial range. H&R's contract for 240,000 used serials in the 2,000,000 range. Small Arms Review and Retro Black Rifle disagree on its delivery dates.

If you're cloning one of these, the lower is your tell. Hydra-Matic lowers read HYDRA-MATIC DIV G.M. CORP. U.S.A., H&R lowers carry a lion in a circle, and neither maker's uppers carry Colt's proof marks ahead of the ejection port.

M16A1 parts list: the issued part and what to buy

Here's the whole rifle in one table. Exact means the issued pattern is sold new. Equivalent means the issued part is select fire or long gone, so you get the closest civilian version. A note in the status column flags weaker evidence.

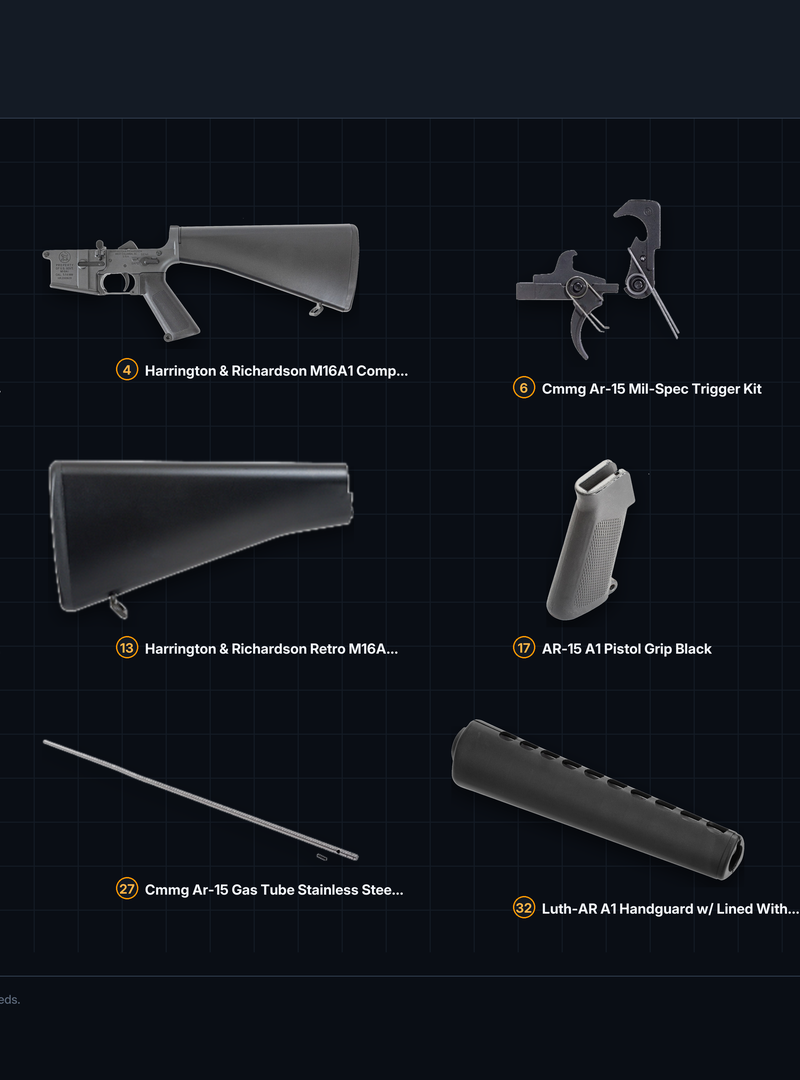

Product photography on the kit board is supplied by the listed merchants through their affiliate feeds.

The lower receiver group

Your lower is where the clone stops being a copy. The issued lower was a select fire machine gun receiver, so every lower you can buy is a semi auto equivalent.

Lower receiver: full fence A1, gray or black

The issued lower is the full fence type, assembly 8448578. It lacks the extra material the A2 added around the buffer tube lug and the front pivot pin lugs, so that's where you look to tell an A1 lower from an A2.

Go gray for a Vietnam era build, since collector guides describe gray green or gray blue anodizing on 1964 to 1970 uppers. Every in stock H&R lower we list comes from Palmetto State Armory, and both Brownells lowers are out of stock.

H&R's complete lowers save you the assembly. The trapdoor stock one suits a 1970s rifle, and the other's listing doesn't say whether its A1 stock has a trap. Skip Colt's SP1 lower; the myths section explains why.

Fire control group and selector: semi auto only

The issued hammer, trigger, disconnector and auto sear (8448610, 8448591, 8448635 and 8448595) are machine gun parts. Your clone gets a semi auto group with no auto sear. That's an equivalent, and it's the only legal route for a new build.

Full fence A1 selectors had no position indicator on the right side. H&R's retro M16A1 selector listing doesn't confirm it's the semi auto part, so we card a plain mil spec selector instead.

Buffer and receiver extension: A1 rifle length

You want a rifle length extension, the improved rifle buffer (8448615) and action spring 8448629. That buffer entered production in December 1966 and replaced Colt's original, which collectors call the Edgewater buffer. Only an early XM16E1 needs the Edgewater, and nobody in our feeds sells one.

Stock: solid early A1 or later trapdoor

Early M16A1s wore the solid Type D stock with a coated swivel. The hollow Type E, with a trapdoor over a cleaning kit compartment, came around 1969, a date the AR15.COM collector who proposed it called supposition. Most H&R and Hydra-Matic rifles shipped without the trap.

H&R sells its solid stock under an M16E1 name, but it's the no trap pattern an early A1 wears.

Both types served side by side, but a 1970s rifle calls for the trapdoor. The CMMG and Luth-AR stocks are budget lookalikes, because their listings don't say whether a trapdoor is fitted. The A2 stock is longer, by 5/8 inch according to Wikipedia.

Pistol grip: A1 with no finger swell

The A1 grip is black plastic with no finger swell. The 1991 manual's replacement grip, 9349127, is the A2 type with a notch for your middle finger, so save it for a late service build.

The upper receiver group

The upper carries almost everything people recognize on an A1, and most of the traps: a brass deflector, the wrong forward assist, a 1:7 barrel sold as retro.

Upper receiver: teardrop forward assist, no deflector

The issued upper, assembly 8448523, has the carry handle, the A1 rear sight, a teardrop forward assist and no brass deflector. A left handed shooter could fit a separate deflector, 9378328, so an upper with a molded one isn't M16A1 configuration.

We checked the H&R and Luth-AR listing photos and found no molded deflector. The Luth-AR stays a budget pick because its listing doesn't spell out the A1 details.

Buy your forward assist by name, not number. The 1991 manual lists 9349086 and draws it with the later round button, and we found no part number for the teardrop.

Barrel: 20 inch pencil profile, 1:12 twist

The issued barrel is 20 inches long and 0.625 inch at the front sight base, with six grooves and one right hand turn in 12 inches. That twist suits 55 grain M193, and our guide on why a 1:12 barrel wants M193 covers the ammo side.

Our only 1:12 A1 barrel is out of stock. The in stock H&R pencil barrel is 1:7, an equivalent you should pick only if you'll shoot heavier bullets like M855.

Gas system: rifle length tube and slip ring

You need a rifle length gas tube (8448567 as issued) under a flat slip ring and a .625 triangular cap. An A2 delta ring is the wrong pattern. The earliest XM16E1 tubes were magnetic carbon steel, and no listing we carry claims one.

Handguards: triangle halves with heat shields

A1 handguards are triangular, rifle length and black, in left and right halves lined with aluminum heat shields. Drain holes arrived in 1968 and L and R marks in 1969. Our listings don't say which you'll get, so check the photos if you're building a specific year.

Sights: forged front base and L type flip rear

The forged front sight base carries the bayonet lug, the sling swivel and your elevation zero, since the A1 rear sight only adjusts windage. Skip an F marked base. It's the taller base made for flat top uppers, so it sits too high under a carry handle sight. Our only A1 base is out of stock.

The manual's front post has five notches per revolution. Retro suppliers sell it as a round post, though none of our sources states the issued shape. The rear is the A1 L type flip, with an unmarked aperture for 0 to 300 meters and an L aperture for longer range.

Flash hider: the open bottom A1 birdcage

The A1 birdcage is slotted all the way around, bottom included, on 1/2-28 threads. Save the closed bottom A2 compensator for a late rebuild and the three prong for an XM16E1 or a very early 1967 rifle.

Bolt carrier group: M16 profile carrier

The issued carrier is the M16 profile, assembly 8448501, and retro suppliers sell the same profile for semi auto builds. The finish is disputed. Retro Black Rifle shows manganese phosphate on the M16A1, a summary of Dan Shea's model guide calls chrome standard, and Wikipedia describes a switch to Parkerized carriers.

Pick either finish and you'll have a source behind you.

Charging handle: standard A1 with small latch

The M16A1 used the standard handle, 8448517, with the small latch. The triangle handle sold as retro belongs to the Model 601, as the myths section explains.

Issued kit beyond the rifle

The 1985 operator's manual lists what went with the rifle. A 30 round magazine and the small arms sling, 8448770, were part of the rifle itself. The bayonet and the bipod were unit authorizations.

We couldn't confirm the Vietnam era sling's material or color, so we won't tell you which reproduction is right. The M15A2 blank firing attachment fitted the flash suppressor, and no light, laser or suppressor appears in the manual at all.

Magazines: 20 round first, 30 round later

The rifle went to Vietnam with a 20 round aluminum magazine, and by 1985 the manual listed a 30 round magazine, 8448670. When 30 rounders first reached units is disputed. The magazines below are new production aluminum, and USGI in a listing name is the seller's wording, not a Vietnam era claim. Colt's 30 rounder leads, then D&H's 20.

Bayonet, bipod, launchers and night sights

The bayonet was the M7 with its scabbard, 8427025, and the lug is on your front sight base. The M3 bipod came with a carrying case. A grenadier's rifle in Vietnam could carry Colt's XM148 launcher, about 3 pounds per Forgotten Weapons. Wikipedia dates the M203 to 1969.

Soldiers of the 1st Battalion, 32nd Infantry at exercise Team Spirit '84 in South Korea, 17 March 1984, with an M16A1 and M203 grenade launcher on the right and an M21 on the left. U.S. Army photo by SPC 4 Long, National Archives. Public domain, via Wikimedia Commons.

No day optic was standard, but an AN/PVS-2 Starlight scope could ride the carry handle at night. Colt's 3x and 4x carry handle scopes were likely private or unit buys for specialized units such as MACV-SOG, per We Are The Mighty.

An infantryman of the 197th Infantry Brigade with an M16A1 carrying an AN/PVS-2 Starlight scope on the carry handle. The date on file is uncertain, so we give none. U.S. Army photo, photographer unknown (VIRIN DA-ST-84-04991). Public domain, via Wikimedia Commons.

We don't carry any of that issued kit. The closest thing we stock is Colt's 4x21 carry handle scope, which suits a special unit variant, not a standard rifle.

M16A1 variants: XM16E1 to Desert Storm

Pick your year before you buy, because a 1966 rifle and a 1990 rifle wear different parts. For the short Vietnam carbine, see our XM177E2 Vietnam Commando clone.

XM16E1 and early 1967: three prongs, partial fence

The XM16E1 wore the improved three prong flash hider and sat on a partial fence lower. Its barrels had no chrome and were marked M VP 12, then MP 12, and rifles built before about December 1966 used the Edgewater buffer.

Brownells sells an XM16E1 three prong and a semi auto XBRN16E1 lower. The lower, an equivalent of the select fire original, is out of stock.

1967 to 1970: birdcage, solid stock, chrome chamber

The classic Vietnam A1 has the birdcage, the solid stock and, from about September or October 1967, a chrome chamber with a plain bore. Heat shields got drain holes in 1968, and the gas tube's bend moved forward in 1969.

The 1970s rifle: trapdoor stock and chrome bore

A 1970s A1 gets the trapdoor stock and, from 1970 or 1971, a chrome bore marked C MP B. From 1974 barrels read C MP CHROME BORE, and Colt kept building 603s for the Army until 1982.

M16A1 vs M16A2: late A1s wearing A2 parts

Round handguards don't make a rifle an M16A2. The 1991 maintenance manual for the M16A1 lists A2 replacement parts: handguard 9349059, grip 9349127, stock 9349119, front sight post 9349056 and a round button forward assist.

So late A1s wore a mix, like the Desert Storm Hydra-Matic rifle one AR15.COM owner describes with A2 handguards and grip. Check the lower marking, the A1 rear sight and the pencil barrel. Wikipedia dates the M16A2 to 1983 for the Marines and 1986 for the Army.

The 20 inch line ends with our M16A4 clone build, and the M4A1 Block I clone build shows what replaced carry handle rifles. Two later carry handle Colts get guides of their own: the Black Hawk Down CAR-15 build and the Colt 733 from Heat.

What the internet gets wrong about the M16A1

Most A1 myths put a real part on the wrong rifle. The table gives the short version, and the five below matter most to your build.

The triangle charging handle is a Model 601 part

Brownells sells its triangle handle as the 601 pattern, and Dan Shea's model guide gives even the Model 602 the new style handle. Building a 601 clone? Buy the triangle. For an A1, you want the standard handle with the small latch.

Colt's reissue wears a three prong, not a birdcage

Gun Digest's first look at Colt's M16A1 Retro Reissue, the CRM16A1 announced for early 2017, describes a teardrop forward assist, no deflector and a 1:12 chrome lined pencil barrel. It also describes a three prong. That matches an XM16E1, so swap in a birdcage for a later A1.

One retailer's listing confirms the CRM16A1 part number, then describes an A2 stock and a muzzle brake. Don't trust feature text.

Chrome lining came in two steps, not one

The chamber got chrome from about September or October 1967 and the bore from 1970 or 1971, so a 1968 rifle has a chrome chamber and a plain bore. Pew Pew Tactical's May 1967 date marks when chrome went on the Army's revision list, a decision and not a production date.

Part 9349086 is not the teardrop forward assist

Our own first pass at this research paired the teardrop with 9349086. The 1991 manual lists 9349086 as the forward assist, but its figure C-9 draws a round button plunger. We found no Army number for the teardrop, so you'll need to buy it by description.

An SP1 lower is not an M16A1 lower

Colt's civilian SP1 lower has a larger front pivot pin hole and a double headed pivot screw, and early ones are slab sided with no full fence. Small pin and large pin receivers only mate with an adapter pin, so plan for one if you pair an SP1 lower with a mil spec upper.

What you can buy today and what is unobtainable

We checked every part against our catalog on 27 September 2026. The cards show live prices, and this section records what we found that day.

M16A1 parts in stock on GPP today

In stock that day: H&R retro lowers, complete lowers and a stripped upper, plus H&R complete uppers in 1:12 and 1:7. Teardrop forward assists, A1 stocks, grips, handguards, rear sights and charging handles were in stock too. So were the rifle gas parts, round front sight posts, birdcages, the XM16E1 three prong and M16 carriers in both finishes.

One caveat: every in stock H&R lower, upper and barrel we list comes from Palmetto State Armory. If PSA sells out, most of those cards go out of stock together.

Out of stock or not carried yet

Out of stock: the only 1:12 A1 barrel, the only A1 front sight base and every Brownells A1 lower and upper. The Colt and H&R retro rifles and a surplus canvas sling are listed but had no stock. We don't carry a cleaning kit or a blank firing attachment yet. Several of our merchants list some of them.

Parts no retailer can sell you

The select fire lower, the auto sear and the M16 hammer, trigger and disconnector are machine gun parts. A working AUTO position is only legal on a registered pre 1986 transferable machine gun, so none of them goes on your build.

The launchers and the AN/PVS-2 were military issue. None of our feeds carries them, the M3 bipod or the M7 bayonet. Our feeds are a sample of the market, not all of it.

How to build an M16A1 clone: factory retro or parts

You can start from a factory retro rifle or upper, or build from a lower and parts. Either way you end up with a semi auto AR-15 in A1 parts.

Factory rifles: Colt, H&R and Brownells

Colt's CRM16A1 gets the forward assist, deflector and 1:12 barrel right, three prong aside. Brownells' BRN-16A1 rifle uses a 1:12 barrel, per all4shooters, and at least one H&R retro rifle ships with a 1:7 barrel. We list the Colt and H&R's 1:12 rifle, but neither had an in stock offer on 27 September 2026.

We can card the factory uppers. Both below are 1:12.

Original USGI parts or new reproductions

Surplus Colt parts kits fill the search results for an M16A1 parts list. We haven't documented any seller's kit, so we won't vouch for one, but two rules hold. Auto sears and select fire parts stay out of your build, and markings tell you what you're holding.

Colt barrels run from M VP 12 to C MP CHROME BORE, and rebuild barrels carry SAK, FNMI or MFR26978. New H&R branded retro parts are reproductions, since H&R's Army contract ended in 1971.

What an M16A1 clone costs today

We priced a matched gray rifle from in stock offers on 27 September 2026, leaving out magazines.

If your upper ships with a carrier and handle, drop those lines. A full parts build can't be priced end to end yet, because the only 1:12 barrel and A1 front sight base are out of stock.

M16A1 builds on GPP: what they show

Our builder data for this rifle is thin, so here's exactly how thin. We counted GPP carts created from 13 December 2025 to 26 September 2026 that hold an M16A1 pattern part. That means an A1, XM16E1 or BRN-16A1 marked lower or upper, an A1 stock, a 20 inch A1 barrel or an A1 rifle handguard.

That gives 151 carts over those dates, 114 with more than one part, and only 23 of them pass our completeness check. We couldn't screen 85 for bots, mostly because our bot check starts on 22 April 2026. A cart is a plan, not a purchase.

On 9 August 2026 one visitor searched GPP for "vietnam build" and "m16 style build" and got nothing back.

Twist is the clearest signal. Among carts holding an A1 marked upper or barrel, 18 name 1:7, 13 name the issued 1:12 and 10 don't state a twist.

Most put an A1 lower on a modern rifle

Most of these carts aren't clones. Of the 114 multi part carts created 13 December 2025 to 26 September 2026, 32 hold a barrel or upper of 16 inches or shorter, 11 a modern handguard and 23 an optic, while only 38 name a 20 inch barrel or upper.

The draw is the gray H&R retro M16A1 lower. From 31 January to 27 September 2026, builders added it 46 times in 19 sessions at a median $159.99.

The eight builds closest to an issued A1

By hand we found 8 carts, created 13 December 2025 to 26 September 2026, that pair a 20 inch A1 upper or barrel with a fixed rifle stock and no modern handguard. The closest, from 20 January 2026, has an H&R trapdoor lower, an H&R retro upper, rear sight kit and gray charging handle, and a Wilson Combat M16 carrier. Its upper is 1:7.

The civilian legal path to an M16A1 clone

Semi auto parts only, no auto sear

Your clone has to be semi automatic: semi auto hammer, trigger, disconnector and selector, and no auto sear. A working AUTO position is only legal on a registered pre 1986 transferable machine gun. If a surplus kit includes select fire parts, those stay out.

Colt's own semi auto reissue carries reproduction government property and AUTO markings. We'll leave markings there.

No NFA paperwork, but check state law

Federal law treats a rifle with a barrel under 16 inches as a short barreled rifle, which falls under the NFA. Your 20 inch A1 clears that easily, so there's no pin and weld and no SBR filing.

A suppressor was never issued, and a suppressor is its own NFA item, though ATF announced on October 9, 2026 that it would stop enforcing approval and registration for them. Check your state too. Our guide to suppressor paperwork covers it.

State law is where an A1 can trip you up. A bayonet lug or flash suppressor can matter under some state assault weapon definitions, and the A1 has both.
