Direct Impingement vs Gas Piston AR-15, in 3D
Watch a direct impingement AR-15 and a gas piston HK416 fire in slow motion x-ray 3D. Follow the gas from the port back into the carrier, or into a piston that kicks an op rod, see which bolt runs hot, and compare weight, cleaning, suppressed use, carrier tilt and cost.
Quick answer
- A direct impingement AR-15 sends gas from the barrel back down a tube into the bolt carrier, which works as the piston. A gas piston rifle such as the HK416 stops the gas at the gas block, where it drives a piston and an operating rod into the carrier.
- Direct impingement is lighter, simpler and takes mil spec parts from any maker. A piston keeps heat and carbon out of the receiver, which helps most when the rifle runs suppressed.
- 1% of the in stock AR-15 uppers and bolt carrier groups in the GunPartPicker catalog are piston parts; the rest are direct impingement.
Source: maker specifications and the GunPartPicker catalog.
See where the gas goes, in 3D
Both rifles fire at once, one cycle stretched to about 100 times its real length, with the first instant slowed most so you can follow the gas. Step through the cycle, switch to one rifle to follow the gas up close, and drag to turn it. Set it to real speed and let it run to see which carrier heats up.
Where does the gas go?Same cycle, two systems
Direct impingement
Return
The buffer spring drives the carrier home. The bolt strips a fresh round off the magazine, chambers it and locks.
Gas piston
Return
The buffer spring drives the carrier home. The bolt strips a fresh round off the magazine, chambers it and locks.
Set the speed to real and press play to dump a magazine. The DI gas ends in the bolt and carrier, so they heat up and carbon up; the piston keeps both at the gas block. Heat cools off between strings, carbon stays until you clean. Illustrative, not measured, and the glow is exaggerated.
Illustrative x-ray, not to real time: the piston, op rod, buffer and spring are drawn shapes, and the gas, flash and heat are effects.

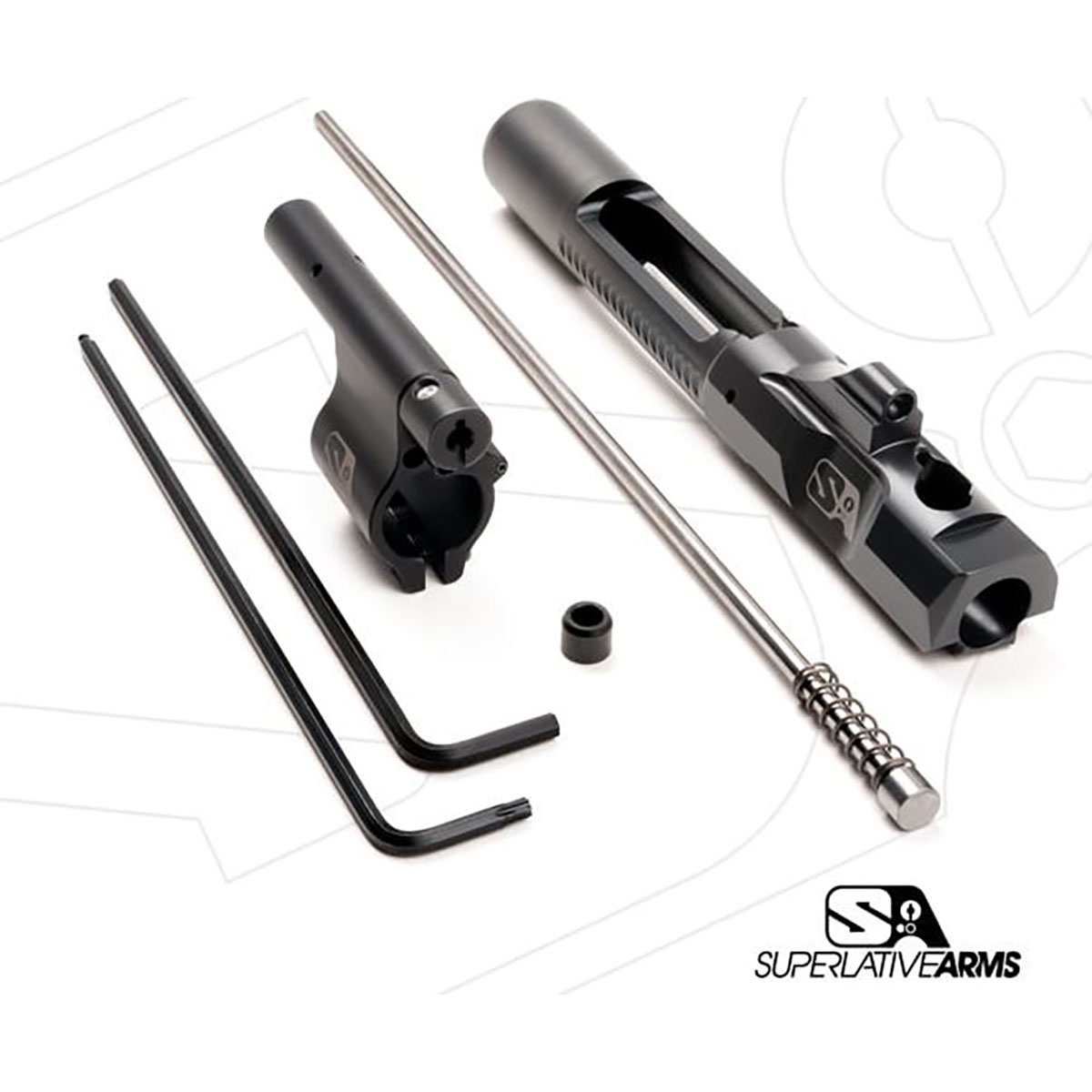

Piston uppers and rifles in stock
Ranked by what builders add most, in stock first. One listing per model.
Direct impingement bolt carrier groups builders pick
Ranked by what builders add most, in stock first. One listing per model.
What is the difference between direct impingement and a gas piston?
Both use the gas behind the bullet to cycle the action. The difference is where that gas does its work and where it ends up.
| Direct impingement | Gas piston | |
|---|---|---|
| Where the gas goes | Back down a tube into the carrier, then out into the action | Into a cylinder at the gas block, then out of the block |
| Heat and carbon | On the bolt, carrier and inside the upper: they take the hot gas every shot | At the gas block and piston: the bolt stays cooler and cleaner |
| Weight | Lighter: an M4 is 6.4 lb empty | Heavier, most of it up front: an HK416 A5 is 6.9 lb or more empty |
| Parts in the gas system | Gas block and tube | Gas block, piston, op rod, spring and often a regulator |
| Recoil | Moving mass in line with the bore | A sharper impulse for some shooters, from the rod and the front weight |
| Suppressed | Works, but more gas and carbon come back | Handles the extra back pressure better |
| Parts compatibility | Mil spec: any maker's parts fit | Piston, rod and carrier are proprietary to each maker |
| Carrier tilt | None: gas pushes along the carrier's axis | Possible: the rod strikes above the bore. Good designs add an anti tilt pad |
| Cost | Lower | Usually more for a like upper, and the parts come from one maker |
| Cleaning | Clean and lube the bolt and carrier more often | Clean the piston and block; the action stays cleaner |
How does direct impingement work?
Eugene Stoner's AR-15 has no piston of its own. A small port in the barrel under the gas block lets gas into a thin steel tube that runs back into the upper receiver and seats in the carrier's gas key. The gas expands in a chamber inside the carrier, behind the bolt, so the carrier is pushed back while the bolt is held forward. The cam pin turns the bolt to unlock, and the whole bolt carrier group rides back against the buffer and spring.
Strictly, that makes it an internal piston system rather than pure gas impingement, but everyone calls it DI. It keeps the moving mass in line with the bore and the gas parts light, which is a big part of why the AR is so soft shooting.
The cost is that the gas, its heat and its carbon end up in the bolt and the receiver. Buffer weight and the gas block are how you tune it.
How does a gas piston AR work?
A short stroke piston rifle like the HK416 keeps the gas at the front. The gas block holds a short cylinder with a piston in it. Gas from the port drives the piston back a short way, and it shoves an operating rod that runs back through the receiver to strike a solid lug on top of the carrier, where a DI carrier has its gas key. The carrier carries on by momentum, the op rod springs forward again, and the spent gas vents out of the gas block.
None of the gas reaches the bolt, so the action stays cooler and cleaner, especially behind a suppressor. The rod hits above the bore, though, and that can tip the carrier's rear down into the buffer tube. Turn on carrier tilt above to see it, exaggerated. Good designs add a pad at the rear of the carrier to stop it.
Is a piston AR better than direct impingement?
For most builds, no. A quality DI AR runs for thousands of rounds between cleanings, weighs less, costs less and takes parts from every maker. That's why the M4, most police rifles and nearly every home build are DI. The newest service rifles are pistons, though: the Marine Corps' M27 is an HK416, and the Army's M7 runs a short stroke piston.
A piston earns its keep on a short barrel that runs suppressed most of the time, or on a rifle that has to go a long time between cleanings. Expect to pay more, carry more weight up front and buy the maker's own parts. See what builders actually choose, from the build data, or price a DI build in the build cost calculator.
Frequently Asked Questions
What is the difference between direct impingement and a gas piston?
Where the gas goes. A direct impingement AR-15 sends gas from the barrel back down a tube into the bolt carrier, which works as the piston. A gas piston rifle stops the gas at the gas block, where it drives a short piston and an operating rod that pushes the carrier back. The gas then vents out of the gas block instead of into the receiver.
Is a piston AR more reliable than direct impingement?
Not in any way most shooters will notice. A quality DI AR runs thousands of rounds between cleanings. A piston keeps heat and carbon off the bolt, which helps a short, suppressed rifle run longer between cleanings, but it adds parts of its own that need care.
Does direct impingement run dirtier?
Yes. The spent gas vents out of the carrier into the action, so the bolt, carrier and the inside of the upper collect carbon and heat. It's worse with a suppressor, which pushes more gas back. A piston rifle's bolt stays much cleaner and cooler.
Is the HK416 a piston AR-15?
Yes. The HK416, and its civilian MR556, keep the AR-15's layout, controls and magazines but replace the gas tube with a short stroke piston and op rod. Its bolt carrier and gas parts are HK's own and don't swap with a mil spec AR.
What is carrier tilt?
On a piston AR the op rod strikes the top of the carrier, above the bore. That off center push can tip the carrier's rear down into the buffer tube, wearing the tube and the carrier. Piston carriers add a raised pad at the rear to keep it level.
Can I convert my DI AR-15 to a piston?
Yes, with a conversion kit that replaces the gas block, gas tube and bolt carrier, though most kits are proprietary and some need a specific barrel or handguard. For the money, a complete piston upper is usually the cleaner path.
Which is better with a suppressor?
A piston, if the rifle will run suppressed most of the time: none of the extra gas reaches the bolt, and many piston blocks have an adjustable regulator. A DI rifle runs fine suppressed with an adjustable gas block or a heavier buffer, but it runs dirtier and blows more gas back at your face.
Cite this tool: GunPartPicker, “Direct Impingement vs Gas Piston AR-15, in 3D”, https://gunpartpicker.net/tools/di-vs-piston. Data from the GunPartPicker catalog and real community builds, prices checked October 28, 2026. Free to cite with attribution.
