Glock Size Comparison: Any Two Models Side by Side
Pick any two Glocks and see them to scale as real photos sized to Glock's published dimensions, side by side, from behind and as an X-ray, with the difference in length, height, width and weight in one line and the pistols in stock for each.
Compare Glock models side by side
Glock A
Glock B
Side profile
From behind
- Slide width
- 1 in0.87 in
- Glock 43X is 0.13 in (3 mm) narrower
- Overall width, with controls
- 1.34 in1.1 in
- Glock 43X is 0.24 in (6 mm) narrower
Tap the drawing to flip between the Glock 17, the Glock 43X and both.
Photos: Glock 17 Gen5 photo by Tony Webster, cut out by LeoPavouk (CC BY 2.0); Glock 43X photo by Kolomaznik (CC BY 4.0); Glock 17 Gen4 photo by Steve Dock, UK Ministry of Defence (OGL v1.0) Contains public sector information licensed under the Open Government Licence v1.0. Cut out and reshaped to each model's published size by GunPartPicker.
Quick answer
The Glock 43X is 1.45 in (37 mm) shorter, 0.43 in (11 mm) lower and 0.24 in (6 mm) narrower than the Glock 17. With an empty magazine it weighs 5.29 oz (150 g) less. It holds 10 rounds in a standard magazine to the 17's 17.
- Glock 17: 7.95 in long, 5.47 in tall, 1.34 in wide, 4.49 in barrel. Glock 43X: 6.5 in long, 5.04 in tall, 1.1 in wide, 3.41 in barrel.
One square is one inch. Real Glock photos sized to Glock's published dimensions, checked September 27, 2026.
Glock dimensions comparison
| Dimension | Glock 17 | Glock 43X | B vs A |
|---|---|---|---|
| Overall length | 7.95 in202 mm | 6.5 in165 mm | −1.45 in37 mm |
| Slide length | 7.32 in186 mm | 6.06 in154 mm | −1.26 in32 mm |
| Barrel length | 4.49 in114 mm | 3.41 in87 mm | −1.08 in27 mm |
| Height with magazine | 5.47 in139 mm | 5.04 in128 mm | −0.43 in11 mm |
| Overall width, with controls | 1.34 in34 mm | 1.1 in28 mm | −0.24 in6 mm |
| Slide width | 1 in25 mm | 0.87 in22 mm | −0.13 in3 mm |
| Trigger reach | 2.68 in68 mm | 2.64 in67 mm | −0.04 in1 mm |
| Weight, empty magazine | 23.99 oz680 g | 18.7 oz530 g | −5.29 oz150 g |
| Capacity, standard magazine | 17 rounds | 10 rounds | −7 |
| Caliber | 9mm | 9mm | Same |
| Glock catalog | Current model | Current model |
Which Glocks are compact or subcompact?
Every Glock in the current US catalog at one scale, grouped the way Glock sizes them. Tap any one to compare it or look at it alone.
Subcompact slimline
Subcompact
Compact
Full size
Every card is to the same scale, lined up at the slide rear. Tap one to compare it or look at it alone.
What Glocks are the same size?
Glock builds one frame in several calibers. These models share Glock's listed length, height and width, so they share holsters too.
Glock 20, Glock 21
8.07 x 5.51 x 1.38 in
20 10mm Auto, 21 .45 ACP
Glock 17, Glock 47
7.95 x 5.47 x 1.34 in
17 9mm, 47 9mm
Glock 32, Glock 44
7.28 x 5.04 x 1.26 in
32 .357 SIG, 44 .22 LR
Glock 20SF, Glock 21SF
8.07 x 5.51 x 1.34 in
20SF 10mm Auto, 21SF .45 ACP
Where can I buy these Glocks today?
Glock 17 in stock
In stock now. One listing per model family.

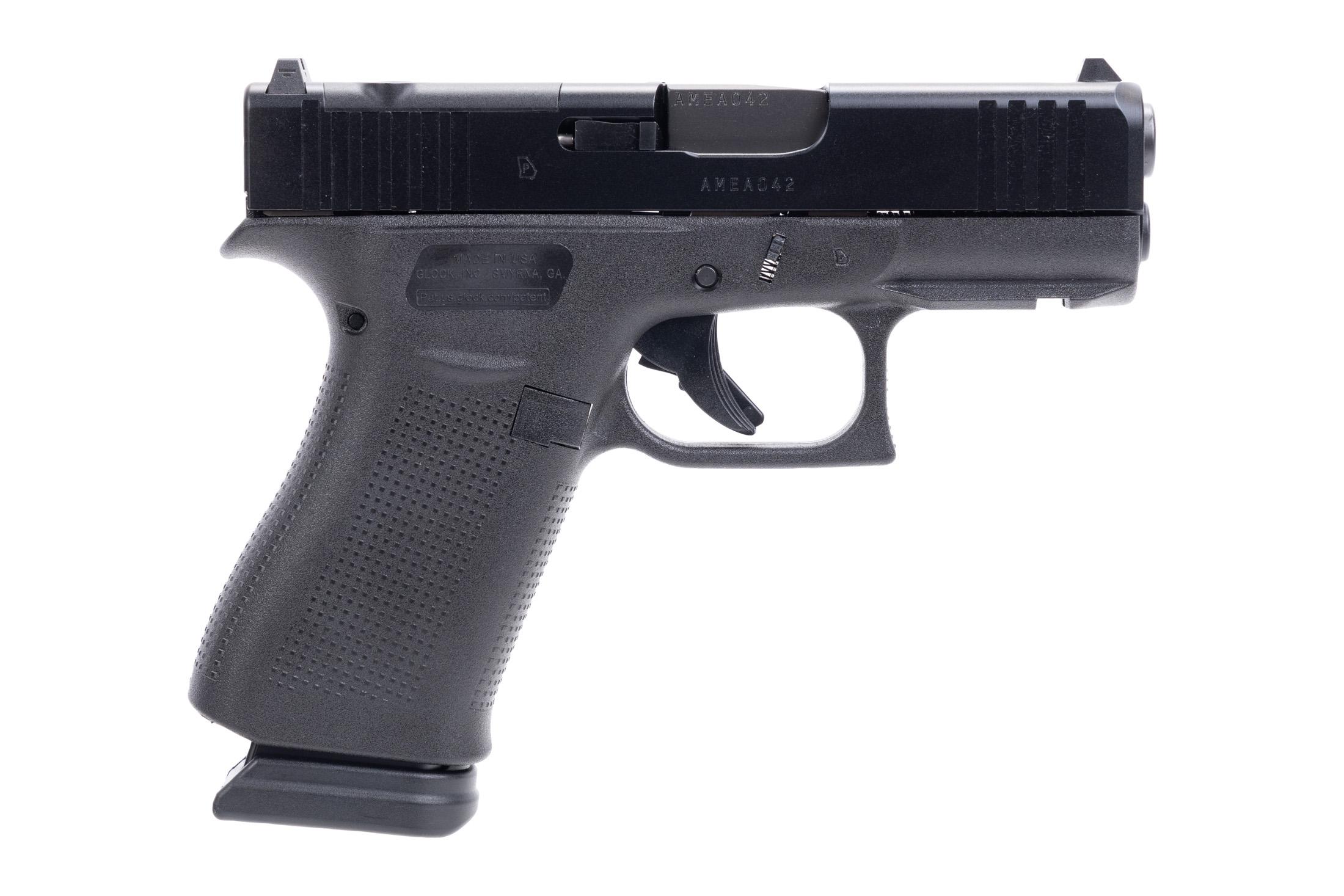

Glock 43X in stock
In stock now. One listing per model family.
Most compared Glocks
- Glock 19 vs 43X
- Glock 43X vs 48
- Glock 26 vs 43X
- Glock 43 vs 43X
- Glock 19 vs 26
- Glock 17 vs 47
- Glock 19 vs 19X
- Glock 19 vs 48
- Glock 26 vs 43
- Glock 45 vs 47
- Glock 19 vs 43
- Glock 20 vs 29
- Glock 20 vs 21
- Glock 42 vs 43
- Glock 30 vs 36
- Glock 22 vs 23
- Glock 23 vs 27
- Glock 26 vs 27
- Glock 17 vs 34
- Glock 21 vs 30
- Glock 43 vs 48
- Glock 19 vs 32
- Glock 43X vs 45
- Glock 19 vs 23
- Glock 19 vs 21
- Glock 19 vs 20
- Glock 19 vs 30
- Glock 19 vs 44
- Glock 45 vs 48
Frequently Asked Questions
Do Glock generations change the size?
Sometimes. Glock lists the Glock 19 Gen3 at 7.36 in long and 1.26 in wide, and the Gen5 at 7.28 in long and 1.34 in wide. The V models share every Gen5 dimension. Pick the generation under each model to redraw it.
Which Glocks share a frame?
Glock builds the same outside size in several calibers. Models with identical length, height and width include the 20, 21; the 17, 47; the 32, 44. They differ in what they shoot, not in the holster they need.
Is the Glock 19 compact or full size?
Compact. Glock puts the 19 in its compact class: 7.28 in (185 mm) long and 5.04 in (128 mm) tall. The 17 is the full size and the 26 the subcompact of the same family.
How accurate is this comparison?
Every length, height and width is Glock's own published figure, checked September 27, 2026, and both guns share one scale. The pictures are real Glock photos reshaped to those numbers, so the size is exact while small details can differ from your generation.
Why does my Glock weigh more than the listed weight?
The weights here are with an empty standard magazine, as Glock lists them. A loaded magazine adds the ammunition: Glock lists the Glock 19 V at 23.63 oz empty and 30.16 oz loaded.
Cite this tool: GunPartPicker, “Glock Size Comparison: Any Two Models Side by Side”, https://gunpartpicker.net/tools/glock-size-comparison. Data from the GunPartPicker catalog and real community builds, prices checked September 27, 2026. Free to cite with attribution.
