Mk12 Mod 0 clone build: the issued SPR, part by part

A Mk12 Mod 0 is an old M16A1 lower under an 18 inch stainless Douglas barrel, a round carbon fiber tube from Precision Reflex and an ARMS rail that runs unbroken over the top. It filled the gap between the M4A1 carbine and a 7.62 sniper rifle.

We've matched every issued part to what you can buy today, from our merchant feeds on 27 September 2026. When the issued part is gone, we still name it.

What a Mk12 Mod 0 clone copies

You're copying the first production Mk12, which Crane built on M16A1 lowers with a Precision Reflex tube up front.

The front end gives it away: a round, vented carbon fiber tube, an ARMS rail over it and a PRI folding front sight. A Mod 1 swaps all three for a Knight's Armament quad rail and Knight's sights.

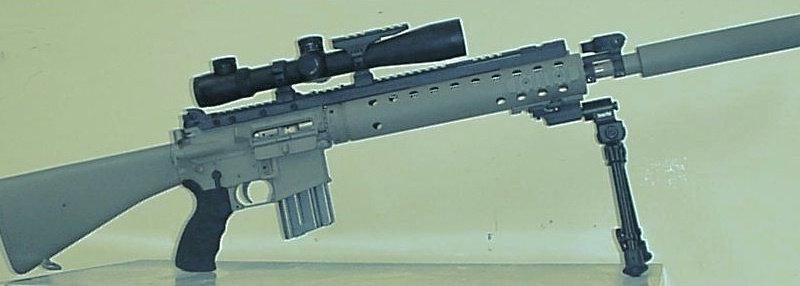

An early SPR in the layout the Mod 0 kept: a vented free float tube under a full length top rail, a folding front sight at the end of the tube, a suppressor, a bipod and a fixed rifle stock. Wikipedia captions it as an SPR rather than a Mod 0. Uploaded to English Wikipedia by Thatguy96 in 2004 and tagged public domain as a U.S. military photo, though the original source isn't recorded. Wikimedia Commons.

Mk12 Mod 0 parts list: the issued part and what to buy

Here's the whole rifle in one table. Exact means the issued pattern is sold new, and equivalent means the closest civilian part. Hunt means you'll search beyond our catalog, and unobtainable means nobody will sell it to you.

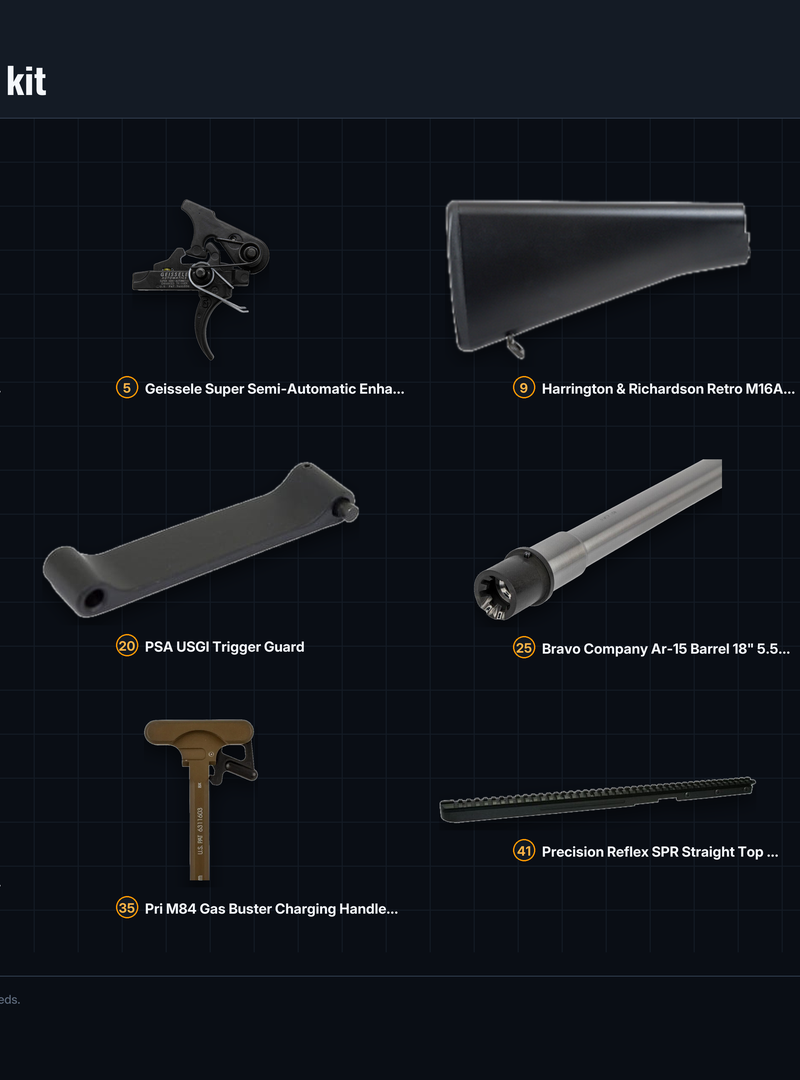

Parts we list for a Mod 0 clone. The OPS/AE brake, SPR collar, black Gas Buster, PRI Gen III tube and OCM5 had no in stock offer on 27 September 2026. Product photography is supplied by the listed merchants through their affiliate feeds.

Mk12 SPR history: from SOPMOD upper to issued rifle

The Mk12 began as the Special Purpose Receiver, an accurized 5.56 upper for SOPMOD that dropped onto the M16 and M4 lowers units already had. It came out of the same program as the SOPMOD Block I M4A1 of the same era.

SADJ credits the idea to Mark Westrom, later president of ArmaLite, and dates the validated requirement to October 1999, after the 5th Special Forces Group revived it. Wikipedia, citing Rottman, puts Westrom's proposal in 2000, so the early dates are SADJ's alone.

Thunder Ranch and the first 150 uppers

Formal testing ran at Thunder Ranch, Texas, in October 2000. SADJ says the first 150 receivers carried 18.5 inch barrels, 50 each from Krieger, Douglas and Schneider, and Douglas won on performance and cost.

The first rifles had 20 inch barrels, SADJ says, but the Navy would only buy a new length, so the barrels were cut to 18.5 inches.

Into combat in 2001, retired around 2017

SADJ says most of the first 100 test rifles went to war when Operation Enduring Freedom began in the fall of 2001. In 2002, per GlobalSecurity, the Navy type classified the system as a complete rifle, later designated the Mk 12.

Athlon, Primary Arms and BG Defense say the program ended around 2017, though we found no official record. Sniper Central wrote in 2020 that a few SEAL teams still used it and named the Mk 16, Mk 17 and M110 as replacements.

The lower receiver group

The lower is the easy half: retro M16A1 hardware that's still made, plus two select fire parts you'll swap for semi auto ones.

Lower receiver: M16A1 pattern, mostly Colt

SADJ says Crane built these rifles on obsolete M16A1 lowers turned in by National Guard and Reserve units. Sniper Central says most were Colt, with some GM Hydramatic.

Yours has to be a semi auto A1 profile lower, and H&R's retro M16A1 is the closest equivalent we stock, in gray or black. SADJ also saw M16A2 lowers in photos, so H&R's A2 lower works too, and PSA's A2 marked lower is the budget pick.

Many issued lowers got Norgon ambidextrous magazine catches, per SADJ. Ours was out of stock.

Trigger: Knight's two stage and its semi auto stand ins

The first rifles used Knight's Armament's two stage select fire trigger, which Wikipedia calls the standard. SADJ says the last production rifles appear to have used an Accuracy Speaks single stage group instead, and nobody has settled it.

Both are select fire, so neither goes in your lower. Units later fitted Geissele triggers, per Athlon and Sniper Central, and the semi only SSA-E or the plainer SSA is the civilian route. The G2S and LaRue MBT-2S cost less.

Stock: fixed A1 or A2 from Crane, not SOPMOD

SADJ says every Mk12 left Crane with a fixed stock, and units changed them later. Sniper Central says the originals wore M16A1 or A2 stocks.

A fixed stock needs a rifle length tube, buffer and spring. The Luth-AR A2 listing includes that kit, so check the others before you order, and you'll find more in fixed rifle stocks compared.

Copying a rifle after its unit swapped stocks? Wikipedia lists the Crane enhanced telescoping stock, the LMT SOPMOD, which needs a carbine buffer. BCM's Gunfighter is the cheaper lookalike.

Grip and trigger guard: A1 grip, GI guard

SADJ says issued rifles wore the A1 grip or a Falcon Industries Ergo, and Sniper Central adds the A2. Nobody names the Ergo model, so the Suregrip is an equivalent.

Only one enthusiast parts list names the trigger guard, a standard GI part. It's weak evidence, but you'll pay under $5.

The upper receiver group

The upper is where stock runs thin. Only the carrier, charging handle and gas tube are easy buys.

Upper receiver: Colt flat top

SADJ says the uppers were mostly Colt, including Diemaco made receivers, and early production used M16A4 flat tops with feed ramps cut by hand for 77 grain bullets. Sniper Central says M4 uppers instead.

We list Colt's AR15A4 flat top uppers, stripped and assembled, but both were out of stock, so the closest in stock pick is a scratched BCM demo unit.

Barrel: Douglas 18 inch stainless, 1 in 7, rifle gas

Production barrels were Douglas, 18 inches, 416 stainless and button rifled 1 in 7, with a rifle length gas system and a lighter SPR contour. SADJ, Sniper Central and Tom Beckstrand, a former Special Forces Mod 0 user, agree on the essentials.

We don't stock a Douglas. BCM's 18 inch Mk12 SPR barrel is stainless with rifle gas but 1 in 8. Ballistic Advantage's Modern SPR has the Ops 12 collar shoulder, and one merchant lists it at 1 in 7, but it's 4150 steel.

Any rifle length gas tube matches.

Muzzle device: OPS brake and suppressor collar

The OPS Inc brake doubled as the suppressor mount, with the can threading onto the brake and aligning on a collar. The enthusiast list calls for a long collar, but no source we found confirms the length.

Otter Creek's OPS/AE brake and SPR collar are our closest. The brake was out of stock and the collar had no offer at all. A PRI and Allen Engineering brake with collar sits in stock in a feed we haven't matched.

Bolt carrier and charging handle: M16 carrier, PRI Gas Buster

Sniper Central says the rifles used standard M16 carriers, and an M16 carrier is legal in your semi auto build. Only the enthusiast list names Colt as the maker, and Colt's carrier was out of stock. BCM's is in stock, and Toolcraft's full auto profile carrier is the budget pick.

SADJ and Athlon both name the PRI Gas Buster, and SADJ gives #05-0031 for those fitted in 2007. The military latch rests on the enthusiast list, and our black #05-0031 had no linked offer. The FDE military latch and the combat latch Gas Buster, an equivalent, were in stock.

The PRI handguard, ARMS rail and sights

These four parts make a rifle a Mod 0, and none of the issued versions had an in stock offer on GPP.

Handguard: PRI Gen III carbon fiber free float tube

SADJ, GlobalSecurity and Wikipedia put PRI's carbon fiber and aluminum Gen III forearm on the Mod 0, and SADJ gives #05-073-03 for the rifle length tube fitted in the 2007 rebuilds. Sniper Central alone says Gen I.

Our catalog lists that part at 12 inches, one merchant says 12.5, and Beckstrand's 12.5 inch tube came on a PRI review upper. Both our listings were out of stock. See also the M4A1 URGI, which inherits the free float idea.

Top rail: ARMS #38 SPR sleeve

The ARMS #38 Swan Sleeve gives the Mod 0 its continuous top rail. Which #38 is disputed: SADJ names the "#38 SPR Mod." with the Gen III, while Wikipedia says the Gen III only takes the "#38 SPR PEQ-2-3".

Neither turned up in any feed we read, and ARMS lists only the AR-10 #38 today. Plan on the used market, or use PRI's straight SPR rail for Gen III forearms as a stand in.

Front sight gas block: PRI folding

SADJ says PRI made the Mod 0's gas block with a folding front sight, adjustable for elevation by a dial.

Every PRI folding gas block in our catalog is a .308 part. The YHM flip up block is our equivalent, and its listing doesn't give the journal diameter, so match it to your barrel.

Rear sight: ARMS #40, not the #40L

SADJ names the ARMS #40 stand alone flip up, with long and short range apertures and windage adjustment only, and ARMS lists it for 500 to 600 meters.

The #40L is a different, lower sight, and the enthusiast list warns against it too. We carry no #40, so ARMS's own #71L is our stand in.

Optic, scope rings and laser

Wikipedia gets the scope's magnification wrong, and your ring height depends on the sleeve.

Optic: Leupold TS-30A2, the Mark 4 MR/T 2.5-8x36

The issued scope is the Leupold TS-30A2, which Leupold identifies as its Mark 4 MR/T 2.5-8x36 with an illuminated TMR reticle. Its service timeline puts it on the Mk12 from 2002 and names both Mods.

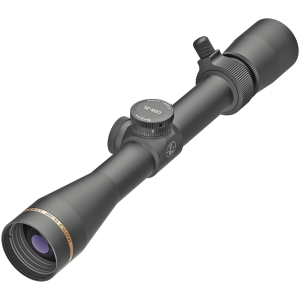

Wikipedia and SADJ call it a 3 to 9 power scope, and we go with the maker. It's discontinued, so the Mark 4HD 2.5-10x42 TMR is our nearest. The VX-3HD 2.5-8x36 costs less than half as much, but its 1 inch tube won't fit 30mm rings.

Other scopes: LR/T 3.5-10x40 and Nightforce NXS

The enthusiast list puts a Leupold Mark 4 3.5-10x40 on its Mod 0. Wikipedia ties that LR/T to an earlier SPR, and Athlon calls such scopes retrofits from units' other sniper rifles.

Athlon and Sniper Central also name a Nightforce NXS 2.5-10x24, a size Crane's 2005 SOCOM contract covered without naming the Mk12. We stock neither, and the NXS Compact 2.5-10x42 is our nearest Nightforce.

Scope rings: ARMS #22 medium throw lever

The Mod 0 used ARMS #22 throw lever 30mm rings in medium height, because the Swan Sleeve already raises the rail. The Mod 1 used #22 High rings on its rail.

ARMS says current rings have lever stops. The enthusiast list calls for rings without them, but no issued record confirms it. We list the #22 Medium, but it was out of stock, so Warne's 30mm medium QD rings are a budget stand in.

Laser: AN/PEQ-2A, the least documented part

The enthusiast list includes an AN/PEQ-2A, but we found no source tying one to the Mod 0. American Special Ops shows one on a Mod 1, and the Lone Survivor film prop carries one.

It isn't an NFA item, but issued IR lasers generally go only to military and law enforcement buyers. Steiner's DBAL-A3 gives you a working civilian IR laser, though it doesn't look like a PEQ-2A.

Suppressor, bipod and Mk 262 ammunition

Of these three, only the can is an NFA item.

Suppressor: OPS Inc 12th Model, now the AEM5

The OPS Inc 12th Model was an over the barrel can about 8.8 inches long. Athlon and Charlie's Custom Clones disagree on how far it reaches past the muzzle, 6.25 or 4.5 inches, and we can't tell you which is right.

Ron Allen told The Firearm Blog that RD Systems built the first 100 or so and Allen Engineering built the rest, and that his AEM5 is the same design with a few fewer baffle holes. We don't list the AEM5. Otter Creek's OCM5, a later copy of the design, is the equivalent we list, and it was out of stock.

Bipod: Harris S-BRM on an ARMS #32 adapter

SADJ and Wikipedia put a Harris bipod on an ARMS #32 throw lever adapter. Harris calls its 6 to 9 inch notched leg swivel model the S-BRM, though the exact height on issued rifles is read from photos. Some rifles added a KMW Pod-Loc, and SADJ mentions Versa-Pods.

We list the Harris S-BRM and the ARMS #32, both in stock, and Midwest Industries' QD mount is a cheaper Harris adapter.

Ammunition: Mk 262 77 grain match

Black Hills developed Mk 262 with SOCOM for the SPR. SADJ says Mod 0, adopted in 2002, used a 77 grain Sierra MatchKing, and Mod 1 added a cannelure in 2003. See how 77 grain loads behave by barrel length.

Issued Mk 262 lots aren't sold. Black Hills' commercial 77 grain OTM is our closest load and Vairog's 77 grain MatchKing load the budget pick, while Brownells lists a Black Hills Mk 262 Mod 1-C can we haven't added. Our search failed one visitor on 13 September: "5.56 70-77grain" found neither load.

Issued magazines were 20 or 30 round aluminum STANAGs. We list aluminum ones from Brownells and D&H, and PMAGs are polymer stand ins.

Mk12 Mod 0 variants and the rifles that replaced it

The Mod 1 kept most of the Mod 0 and replaced the front end with a Knight's free float RAS, Knight's sights and a Crane made gas block. Our Mk12 Mod 1 clone build covers it.

American Special Ops says SEALs and Rangers typically carried the Mod 1. We also cover the Marine Corps SAM-R and the Army SDM-R, accurized 5.56 rifles of the same years.

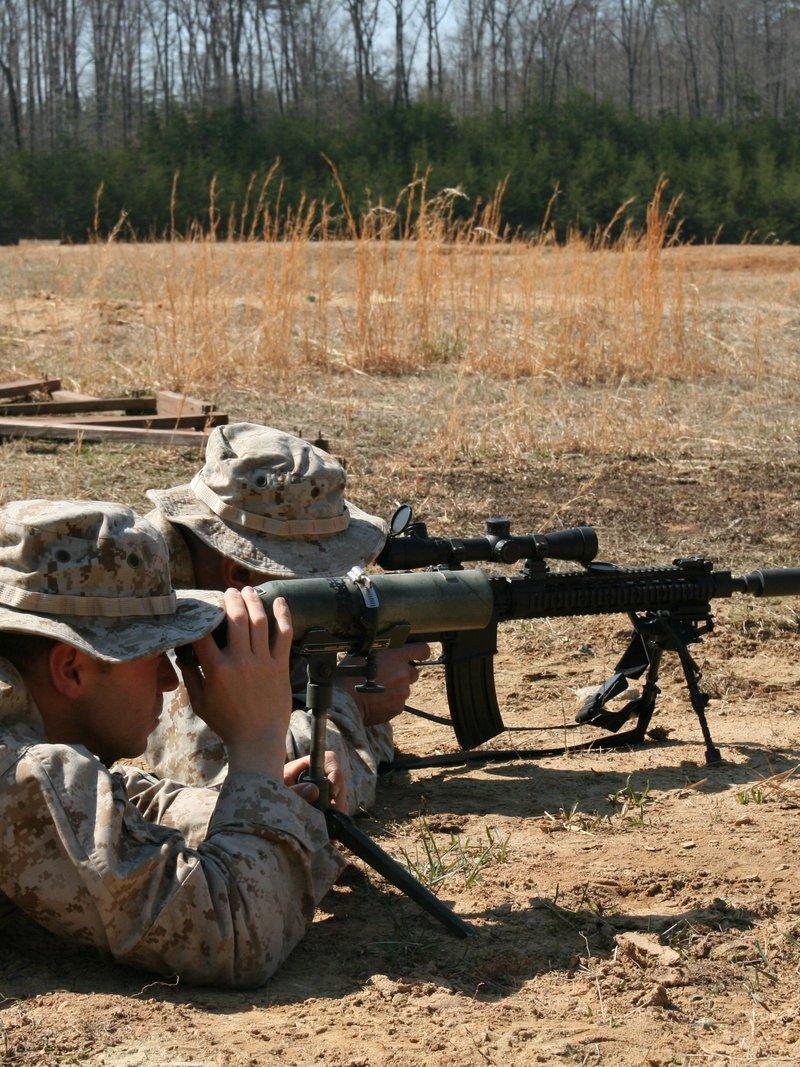

A Marine zeroes a suppressed Mk12 on a Marine Corps Base Quantico range in March 2007 while a spotter calls shots through an M49 spotting telescope. The quad rail marks it as the Mod 1 layout. U.S. Marine Corps photo, Marine Forces Reserve, photographer not named. Public domain, via Wikimedia Commons.

The 16 inch rebuilds cloners call the Mod H

In July 2007, SADJ says, Precision Reflex rebuilt 12 Mod 0 rifles at Fort Campbell, Kentucky, with 16 inch Douglas barrels. Cloners call that pattern the Mod H, a name SADJ never uses, and the 16 inch Mk12 Mod H has its own guide.

What the internet gets wrong about the Mk12 Mod 0

We corrected these while building the list.

Army or Navy: who actually carried the Mod 0

The Mark and Mod name comes from Crane, a Navy activity, and doesn't make the Mod 0 a SEAL rifle. American Special Ops says Army Special Forces favored it, and Beckstrand writes it was the variant on his first SF team.

Wikipedia overstates it with "only used by" Army Special Forces. The SADJ article it cites never says only, and a 2007 Navy photo from Rawah shows Army Special Forces with a Mod 1 pattern rifle.

SEALs are more often tied to the Mod 1, like the film rifle in the Lone Survivor Mk12, a Mod 1 rifle.

SPR first meant Special Purpose Receiver

GlobalSecurity, Athlon, Sniper Central and older Wikipedia text say SPR began as Special Purpose Receiver, the SOPMOD upper, and became Special Purpose Rifle with the complete rifle.

SADJ is the outlier. It calls Westrom's original concept a Special Purpose Rifle and says SPR was later read as SOF Precision Rifle, so you'll see both in print.

The Mogadishu origin story has no source

A fan wiki says the Mod 0 is based on a SEAL Recon Rifle built for the Battle of Mogadishu. Wikipedia, citing Rottman, and Sniper Central do say the SPR grew out of the SEAL Recon rifle, and BG Defense says Somalia reinforced the idea.

We found nothing tying the Recon Rifle to Mogadishu, and SADJ credits Westrom, 5th Group and Crane instead. Our guide to the SEAL Recce rifle that came before it picks up that thread.

1 in 8 and mid length Mk12 parts are not Mod 0 parts

A Mod 0 has a 1 in 7 barrel and rifle length gas under a round PRI tube. Mid length gas belongs to the 2007 rebuilds, and a quad rail means Mod 1. Even our catalog carries a BCM Mk12 SPR profile barrel and several Ballistic Advantage SPR barrels in 1 in 8.

A Daniel Defense Mk12 gas block isn't a Mod 0 part either, because the Mod 0 used PRI's folding sight block. Charlie's Custom Clones credits Compass Lake Engineering with the original barrels, and we found no support for that.

What you can buy today and what is unobtainable

Two choices set your cost: a complete upper or parts, and how many ARMS parts you insist on.

What GPP builders pick: a complete upper

We found 9 GPP carts, created between 10 February and 25 September 2026, holding a Mod 0 signature part: the PSA Sabre or BCM Mk12 Mod 0 upper, or the PRI Gen III handguard. Seven pair a complete Mod 0 upper with a complete lower.

Of those nine carts, the PSA listing below sits in 4, the BCM in 2 and the bare PRI handguard in 2. All nine are anonymous, and none passes our finished build filter because an upper has no separate barrel line. Both uppers below are civilian uppers built to the Mod 0 pattern.

BCM's upper had one in stock offer at $1,556.40. PSA's feed listed the Sabre at $1,348.99, but that offer isn't linked to our page yet.

Parts you will have to hunt for

Here's where each missing part stood on 27 September 2026.

The select fire lower, Knight's select fire trigger and the Accuracy Speaks group aren't available for a new civilian build, and the AN/PEQ-2A goes to military and law enforcement buyers.

What a Mk12 Mod 0 clone costs today

We priced one complete route from in stock listings on 27 September.

We haven't confirmed whether BCM ships the upper with a carrier and charging handle. If not, the BCM M16 carrier and a PRI Gas Buster add $284.99. Rings, a bipod, magazines, ammunition and the can aren't included.

A parts level Mod 0 can't be priced at all, because the PRI tube, ARMS sleeve, PRI front sight and OPS brake had no in stock offer.

The civilian legal path to a Mk12 Mod 0 clone

You can legally build the whole look. Two things change: the fire control group, and the rules for the can.

Semi auto lower and trigger in place of select fire

Issued rifles were select fire. Yours has to be semi automatic unless you build on a registered, transferable machine gun made before May 1986, itself an NFA item. Use a semi auto A1 lower and a semi only trigger with no auto sear. An M16 carrier is fine.

The suppressor is still an NFA item

The OPS 12th Model, AEM5 and OCM5 are suppressors, so they're NFA items. ATF announced on October 9, 2026 that it would stop enforcing approval and registration for suppressors, but some states ban them or only allow registered ones. The brake and collar alone aren't NFA items. Our guide to what changed for suppressors in 2026 covers the tax and paperwork.

An 18 inch barrel needs no SBR paperwork

The 18 inch barrel clears the 16 inch federal minimum on its own, so you don't need short barreled rifle paperwork or a pinned and welded brake. Even the 16 inch Fort Campbell pattern clears it. Check your state's magazine and feature rules before you order.

Sources and photo credits

We read every source below in full. Where a claim rests on one source, the text says so.

Where each fact in this guide comes from

We cross checked every part against an enthusiast parts list and credit it where a pick rests on that list alone. We differ from it on the optic, the late trigger, the carrier maker, the stocks and the bipod name.

Photo credits for this guide

We found no issued Mod 0 photo we could legally host, and the public domain Mk12 photos we found show the Mod 1.
