Gun Tools/Compatibility/Updated September 15, 2026
Glock 48 MOS red dot options: what mounts directly and what needs a plate
The Glock 48 MOS Slimline cut is the Shield RMSc footprint. See every RMSc and Holosun K series optic that mounts with no plate, in stock now.
Quick answer
- 76 red dots mount directly to the Glock 48 MOS with no plate, from the GunPartPicker catalog. Full size optics do not fit this cut.
- The Slimline MOS cut on the G43X MOS and G48 MOS is the Shield RMSc footprint itself: Holosun K series and Shield RMSc optics mount directly, full size optics do not fit.
Source: GunPartPicker catalog and build data, prices checked September 16, 2026
Glock 48 MOS red dot options: what fits
The Slimline MOS cut is the Shield RMSc pattern itself. Holosun K series, Shield RMSc and other RMSc optics mount directly. Full size optics do not fit.
Narrow to the pattern on the bottom of the optic you already own.
Mount directly
76
36 in stock
Mount with a plate
0
0 footprints
Slide cut
Slimline MOS
Slimline, 9mm
Direct footprints
Shield RMSc
no plate needed
Red dots that fit the Slimline MOS cut without a plate
The Slimline MOS cut is the RMSc pattern itself, so these bolt straight to the slide.
Ranked by what builders add most, in stock first. One listing per model.

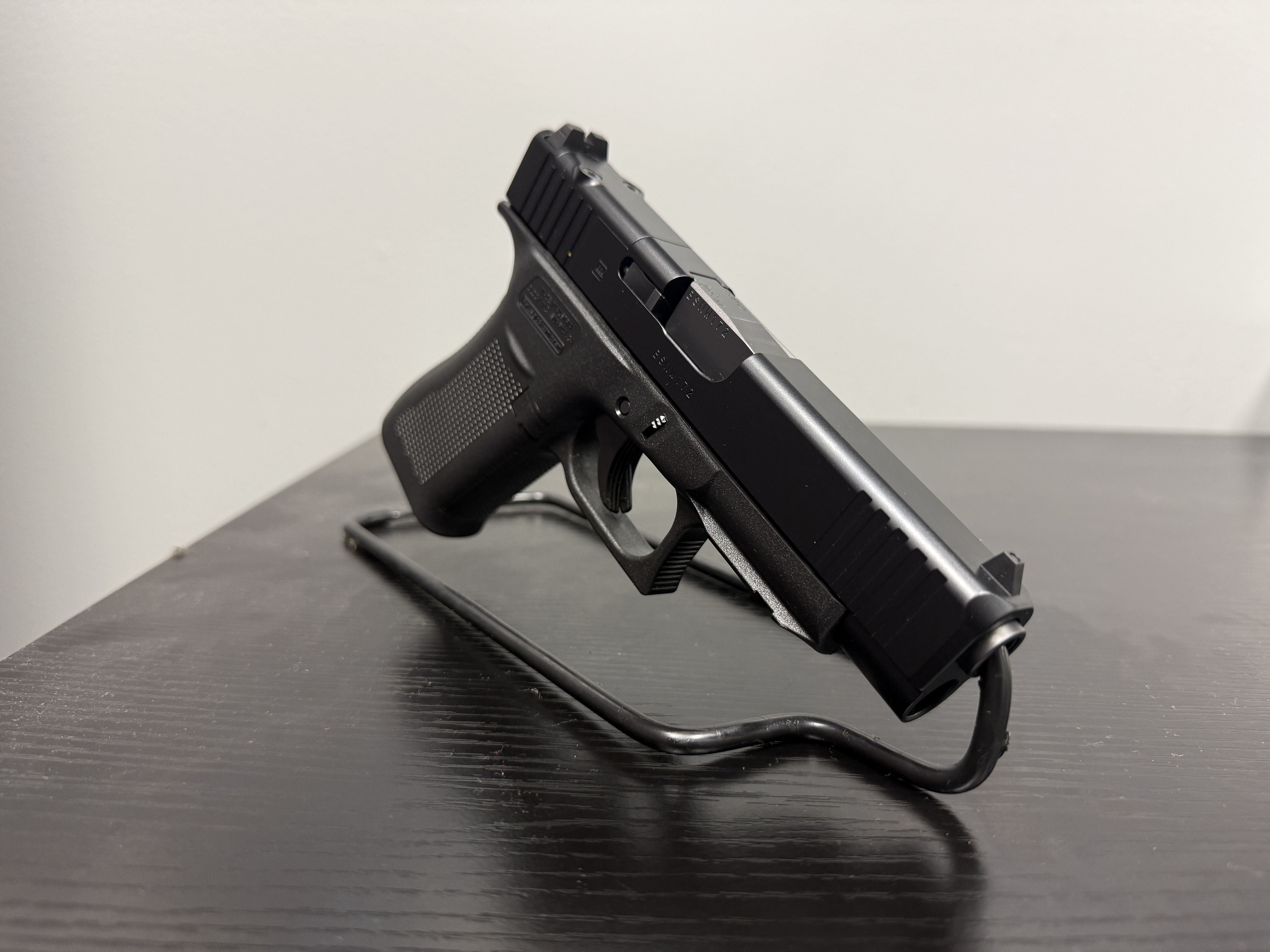

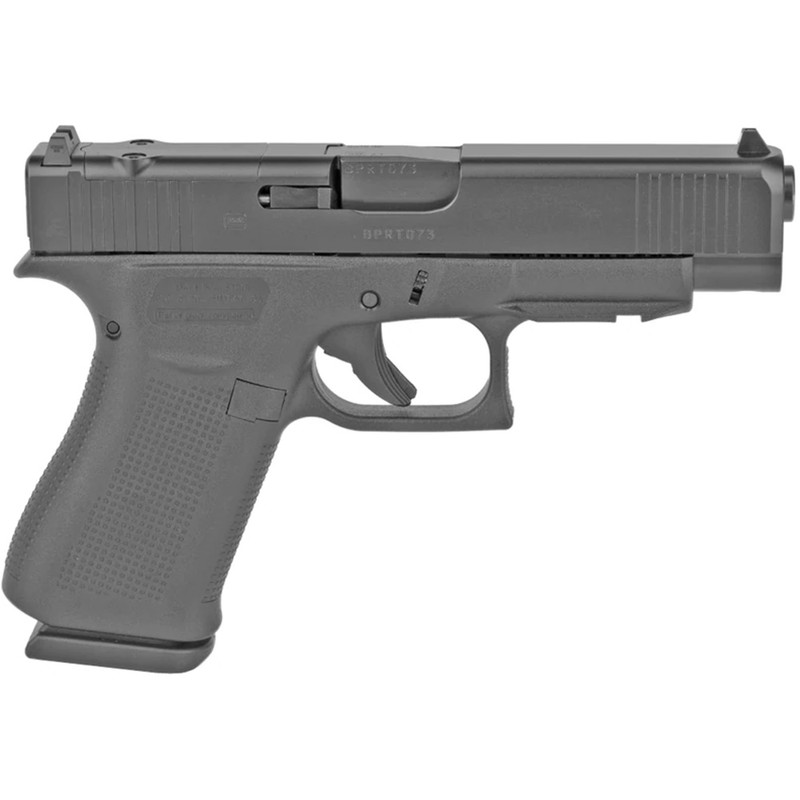

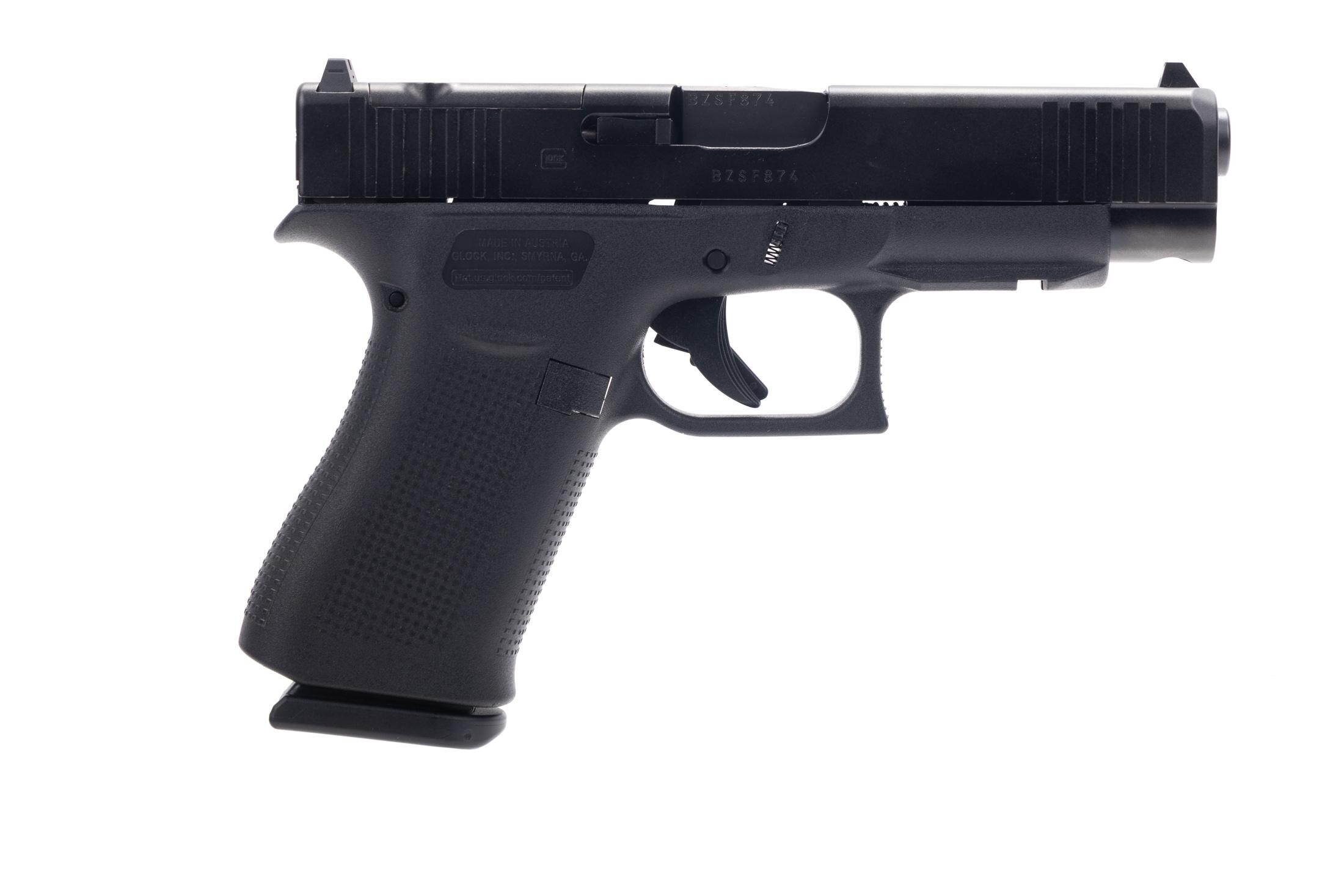

Glock 48 MOS pistols in stock
Factory MOS pistols at this model, ready for a plate and an optic out of the box.
Ranked by what builders add most, in stock first. One listing per model.
How Glock MOS plates and optic footprints work
The thing that determines fit is the footprint: the pattern of screw holes and recoil bosses on the bottom of the optic. A handful of patterns cover almost every pistol dot sold. Trijicon's RMR is the most copied full size pattern. Shield's RMSc, which Holosun's K series shares, is the compact pattern. Aimpoint ACRO, Leupold DeltaPoint Pro and Holosun's 509T each have their own.
A factory MOS slide does not carry any of those patterns. It carries a pocket for a plate, and the plate carries the footprint. Glock's own plate set is polymer and covers four patterns; steel aftermarket plates cover the rest and add a recoil lug. The G43X MOS and G48 MOS are the exception: their Slimline cut is the RMSc pattern itself, so compact optics mount directly and full size optics do not fit at all.
Aftermarket slides skip the plate. They are milled for one footprint, usually RMR, and the optic bolts straight to the steel. That is lower, more rigid and one fewer set of screws to come loose, at the cost of being locked to one pattern.
Glock optic footprint chart: RMR, RMSc, Docter, ACRO, DeltaPoint Pro
| Footprint | Size | Optics on it | On a MOS slide |
|---|---|---|---|
| Trijicon RMR | full | Trijicon RMR, SRO and RCR, Holosun 407C, 507C, 508T and 507COMP, Holosun EPS (with its adapter), Swampfox Liberty and Justice | Plate |
| Shield RMSc / Holosun K | compact | Shield RMSc and RMS, Holosun 407K, 507K and EPS Carry, Sig RomeoZero, Swampfox Sentinel, Vortex Defender-CCW | Slimline: direct. Full size: plate |
| Docter / Noblex | full | Vortex Venom and Viper, Burris FastFire 2, 3 and 4, Docter, Noblex, Meopta MeoSight | Plate |
| Aimpoint ACRO | enclosed | Aimpoint ACRO P-1 and P-2, Steiner MPS | Plate |
| Leupold DeltaPoint Pro | full | Leupold DeltaPoint Pro, Sig Romeo-X Pro, EOTech EFLX, Vortex Defender-ST and XL, Bushnell RXS-250 | Plate |
| Holosun 509T | enclosed | Holosun 509T and 509X | Plate |
| Trijicon RMRcc | compact | Trijicon RMRcc | Plate |
| Sig Romeo1 Pro | full | Sig Romeo1 Pro | Plate |
Frequently Asked Questions
What footprint is Glock MOS?
MOS is not a footprint. It is a plate system. The slide takes a plate, and the plate carries the optic footprint. The Slimline MOS cut on the G43X MOS and G48 MOS is different: it is the Shield RMSc pattern cut straight into the slide.
Which MOS plate fits a Holosun 507C?
The 507C is on the Trijicon RMR footprint, so it uses Glock's plate 02 or any aftermarket RMR plate. The same goes for the 407C, 508T, Trijicon SRO and RCR.
Can I mount a red dot on a Glock that is not MOS?
Three ways. Have the slide milled for the footprint you want, buy an optic cut aftermarket slide, or use a dovetail mount that replaces the rear sight. Milling and a new slide are the solid options; dovetail mounts sit high and lose the rear sight.
Do I need new iron sights with a red dot?
Usually. Standard height Glock sights sit below most optic windows. Suppressor height sights give a lower third co-witness through the dot, and they are the backup if the optic dies.
Are the factory MOS plates good enough?
For a range gun, yes. The plates in the box are polymer and they hold. For a carry or competition gun a machined steel plate with a recoil lug is the upgrade, and the screws that come with the plate are the ones to use, with threadlocker.
Which red dots fit a Glock 43X MOS or 48 MOS?

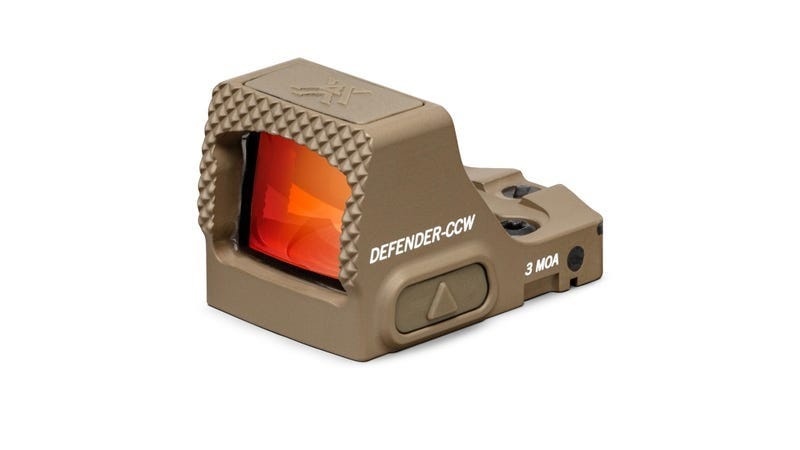

Anything on the Shield RMSc pattern: Holosun 407K, 507K and EPS Carry, Shield RMSc, Sig RomeoZero, Swampfox Sentinel and Vortex Defender-CCW. Full size optics do not fit the Slimline cut.
Does the Holosun SCS need a plate?
No. The SCS-MOS is built to mount directly to a full size or compact Glock MOS slide with no plate, which also keeps it lower than any plated optic.
Cite this tool: GunPartPicker, “Glock 48 MOS red dot options: what mounts directly and what needs a plate”, https://gunpartpicker.net/tools/glock-red-dot-fit/glock-48-mos. Data from the GunPartPicker catalog and real community builds, prices checked September 16, 2026. Free to cite with attribution.
